unity shader自定义ui

例子使用的shader

Shader "Unlit/CustomShaderUI"
{
    Properties
    {
        _MainTex ("Texture", 2D) = "white" {}
        _MainColor("Main Color", Color)=(0.5, 0.5, 0.5, 1.0)
    }
    SubShader
    {
        Tags { "RenderType"="Opaque"}
        // 简单的pass
        Pass
        {
            HLSLPROGRAM
            #pragma vertex LitPassVertex
            #pragma fragment LitPassFragment

            float4x4 unity_ObjectToWorld;
            float4x4 unity_WorldToObject;
            float4 unity_LODFade;

            float4x4 unity_MatrixVP;
            float4x4 unity_MatrixV;
            float4x4 glstate_matrix_projection;

            #define UNITY_MATRIX_M unity_ObjectToWorld
            #define UNITY_MATRIX_I_M unity_WorldToObject
            #define UNITY_MATRIX_V unity_MatrixV
            #define UNITY_MATRIX_VP unity_MatrixVP
            #define UNITY_MATRIX_P glstate_matrix_projection

            float4 _MainColor;

            float4 LitPassVertex(float3 positionOS: POSITION) : SV_POSITION
            {
                return float4(positionOS, 1.0);
            }
            float4 LitPassFragment() : SV_TARGET
            {
                return _MainColor;
            }
            ENDHLSL
        }
    }
    // 声明自定义的编辑器
    CustomEditor "Editor.CustomShaderGUI"
}

最后一行的CustomEditor "Editor.CustomShaderGUI"一定要声明，否则我们编写的CustomShaderGUI展示界面不会生效

注意，这里需要完整的名称空间

ShaderGUI

创建类CustomShaderGUI

该类继承了ShaderGUI,重载OnGUI方法

using UnityEditor;

namespace Editor
{
	/// <summary>
	/// 自定义的ShaderGUI
	/// </summary>
	public class CustomShaderGUI : ShaderGUI
	{
		/// <summary>
		/// override
		/// </summary>
		public override void OnGUI(MaterialEditor materialEditor, MaterialProperty[] properties)
		{
			base.OnGUI(materialEditor, properties);
		}
	}
}

OnGUI方法里有几个对象是比较重要的

• materialEditor

它是负责显示和编辑材料的基础编辑器对象。

• properties

所有的shader属性

• materialEditor.Target

被引用编辑的对象

ShaderGUI的写法和Editor的扩展是一样的！

下面就直接摆上代码好了。

using UnityEditor;
using UnityEngine;

namespace Editor
{
	/// <summary>
	/// 自定义的ShaderGUI
	/// </summary>
	public class CustomShaderGUI : ShaderGUI
	{
		MaterialEditor editor;
		Object[] materials;
		MaterialProperty[] properties;
		/// <summary>
		/// override
		/// </summary>
		public override void OnGUI(MaterialEditor materialEditor, MaterialProperty[] properties)
		{
			base.OnGUI(materialEditor, properties);
			editor = materialEditor;
			materials = materialEditor.targets;
			this.properties = properties;

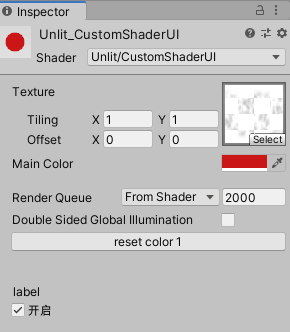

			// 添加按钮
			AddButton1();
			GUILayout.Space(30f);
			GUILayout.Label("label");
			GUILayout.Toggle(true, "开启");
		}
		/// <summary>
		/// 重置颜色按钮
		/// </summary>
		void AddButton1 () {
			if (GUILayout.Button("reset color 1")) {
				// 设置颜色
				// 内置的FindProperty可以查找属性
				FindProperty("_MainColor", properties).colorValue = Color.white;
			}
		}
	}
}
